While site constraints are common with any project, this particular building site on Otsego Lake demanded that any new structure fit within the previous camp’s footprint – no larger, no change in orientation, no closer to the shore. However, there was opportunity to play with the height of a new project and always room for thoughtful use of space.
The Southeast side of Ostego Lake is forever wild. The Northeast is home to a state park, the Western side is a large, privately owned estate. Thanks to good timing several years back, the client purchased this site with an existing three-season camp, on the Northwestern end of the lake. Removal of the old three-season camp revealed a tight 24′ x 31′ footprint.

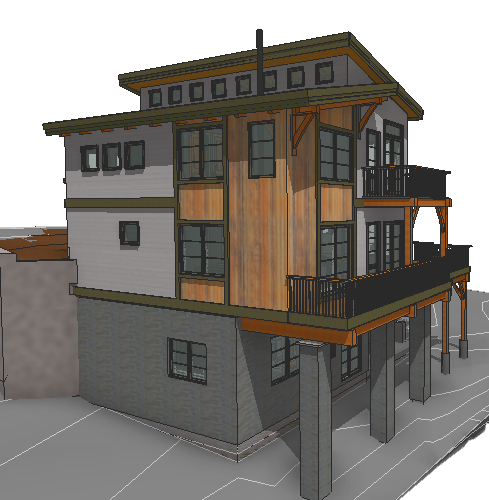

Our design team began the journey to ‘grow up’ on the site by understanding the desires and needs of the client—a father looking to create a four-season, multi-generational family get-away. A sleek mountain-lake aesthetic provided the starting point for a taller, multi-level cottage design. With the lake as a major focal point, contemporary, horizontally mulled rectangular windows were combined with non-mulled square windows for ample views and abundant natural light. A split shed roof will allow the project to stay within height restrictions while creating a clerestory to bring southern light into the upper-level bedroom spaces. “I really like the simplicity and functionality of the split shed roof and I’m excited to see it come to life,” said Pete, lead Architect on this project.
“We knew making the most of the site would likely result in a very “flat” exterior aesthetic. To add dimension we’re incorporating a combination of vertical and horizontal siding in a mixture of materials along with varying the depth of the roof overhangs,” continued Pete.

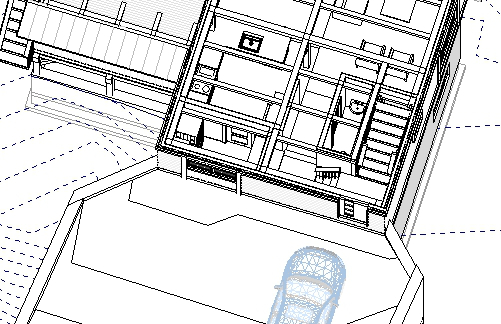

The design suggests setting the project further down into the site to provide parking access at the roadside, rather than lakeside as the camp had previously been oriented. This will provide more “green space” on the lake side of the site, however, it creates an interesting entry point that is situated ‘between’ the main and upper levels. The entrance includes a larger landing with a bench and connections to two staircases: one that leads down to the main level commons and another that proceeds upwards to the bedrooms.

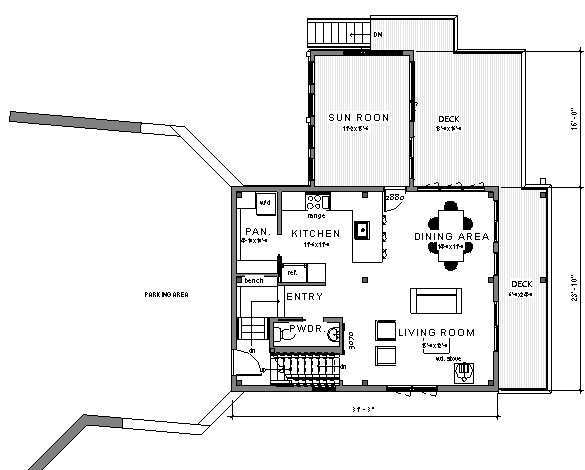

Timber runs from the ground level up, enabling the creation of visual breaks throughout the project’s open spaces with strategically placed structural timber frame posts and beams. Overall the design plays out to 2,000 sq ft with bedrooms, including a master with private balcony, on the upper level, main living on the mid-level, and a guest suite plus lake access from the lower level. Pete and team are continuing to finalize this design, adjusting to meet both client and additional zoning requirements. We can’t wait to see the home as it comes to fruition. Tell us about your dream timber frame.
